ToyBx Specs

Located near the base of the Gardiner and Highway 427, ToyBx is the newest destination for auto enthusiasts in the GTA. Featuring soaring 20 ft. ceilings, twin car elevators, a passenger elevator, and 181,500 sq.ft. of premium real estate that includes pristine washrooms with industrial sinks.



Make a selection to view content
Security
Construction
Garage Door
Car Lifts
Office/Studio
Elect/Mech
Mezzanine
Flooring
Cabinetry
Warehousing

Security

ToyBx will be equipped with a sophisticated, fully integrated, scalable security platform encompassing Avigilon’s IP based video system and ICT’s intrusion detection and access control system. Security will be monitored 24/7 and the systems proposed provide personnel with the tools to Detect, Verify and Act on Critical Events efficiently and effectively.

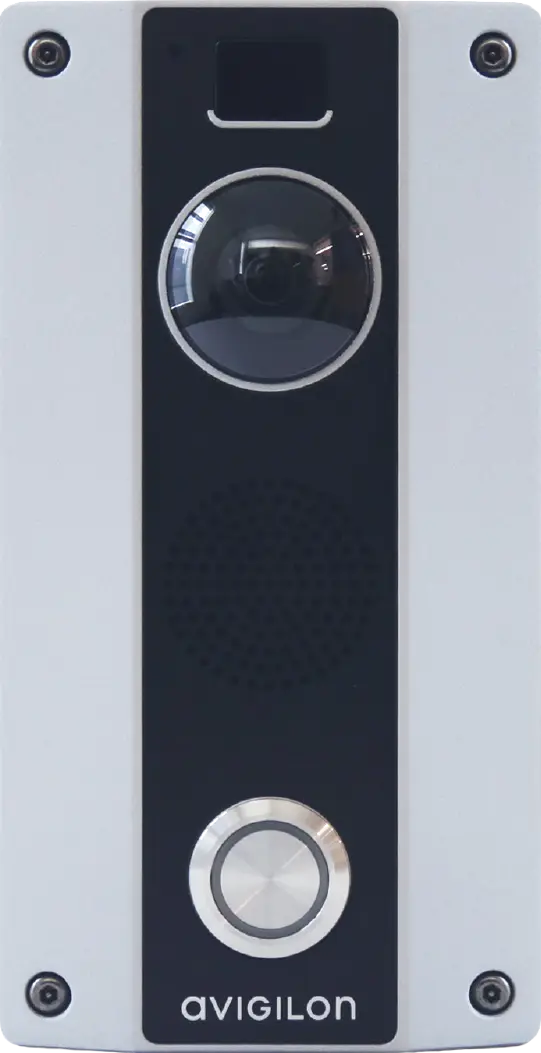

Avigilon H4 Video Intercom
Avigilon H4 Video Intercom

Security is top of mind at ToyBx. That is why ToyBx will be deploying a high-end 48 camera (112 lenses with the use of multi-head cameras) IP based video solution for complete exterior coverage, as well as all common interior areas such as entrances, elevators, and vehicle lanes. The video system will be monitored onsite as well as off-site. However, the power of Avigilon’s Video Solutions is derived from the built-in Artificial Intelligence and Video Analytic features that enable personnel to Detect, Verify and Act on Critical Events, with the use of Avigilon’s Control Centre (ACC) video management software. Powerful search engines permit personnel to filter through enormous amounts of recorded video data efficiently and effectively. Cameras will be linked to intrusion detection inputs (i.e., door contacts, etc.) such that any alarms that occur will have a date/time stamp of the event plus recorded video footage of the event.

Avigilon H4 Video Intercom
Avigilon H4 Video Intercom
Avigilon H4 Video Intercom

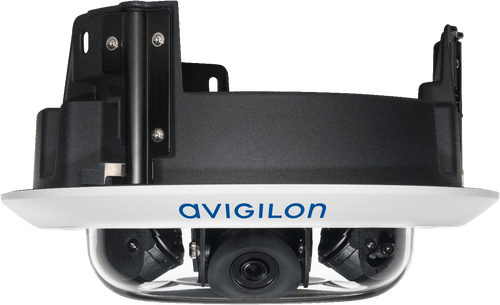

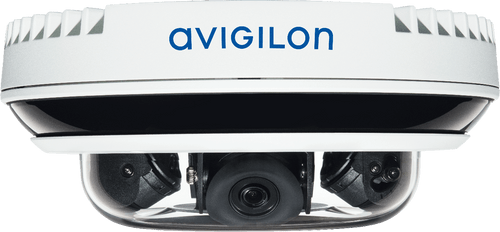

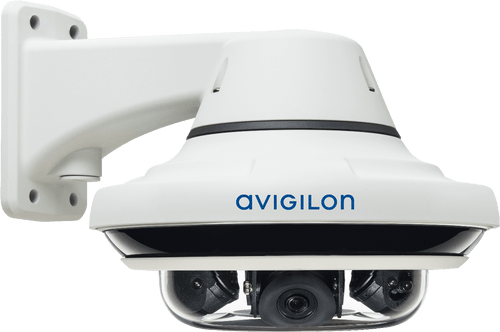

H4 Multisensor camera Line

That leads us to ICT’s intrusion detection and access control system. All ToyBx entrances will be monitored 24/7. Main entrance doors, plus vehicle overhead doors and elevator doors will be fitted with access control. Only people with valid credentials (Mobile Credential, Mobile App, or PIN Code) will have access through these access portals. Pre-determined access levels will control who goes where and when. For example, if you are an owner of a unit on the 2nd floor, then you will only have elevator access to the 2nd floor, and so on. All events will be logged into an event log and transaction reports can be generated on ICT Security Management Software. Graphic Floor plans will be set-up to give personnel a real time visual representation and status of all Toybox’s security points, including Suite/Unit security devices.

Units at ToyBx will be equipped with door contacts for both overhead and entrance doors, as well as motion detectors within the Unit. There will be Keypads installed within each ToyBx Unit for traditional arming/disarming of the Unit plus LCD display and annunciation of system status. In addition, all ToyBx Units will have mobile credential/pin pad readers installed on the outside of the unit allowing for a more modern approach to arming/disarming through secure mobile credentials, mobile APP, or pin codes. Credential/Pin Pad readers will also be integrated via access control functionality to the Overhead Door Operator for the added convenience of the Units being disarmed and overhead door opened from the same user action.

Avigilon H4 Video Intercom

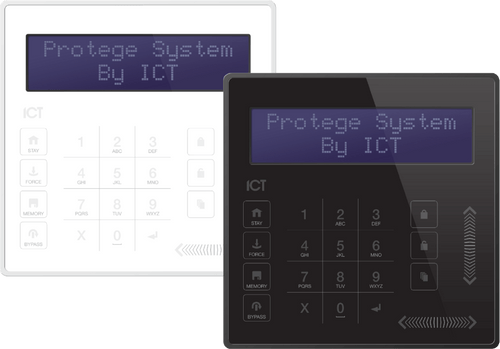

Protege Touch Sense LCD Keypad

ToyBx Units security devices will be monitoring 24/7 onsite and/or offsite and any alarm event will be validated by video verification. This will allow security personnel to Detect, Verify and Act on Critical Events efficiently and effectively. For added comfort, owners will also have the power of monitoring their own Unit security system in their own hands. Push notifications will be sent to Mobile Credential/App users’ mobile devices for real time events such as system armed/disarmed, alarm events, for example.

Avigilon H4 Video Intercom
Protege Mobile App

In summary, ToyBx will implement a sophisticated, fully integrated, scalable security platform. The security platform will not only exceed the security expectations of today but will also be capable of evolving to meet the security need and requirements of the future.

Avigilon H4 Video Intercom

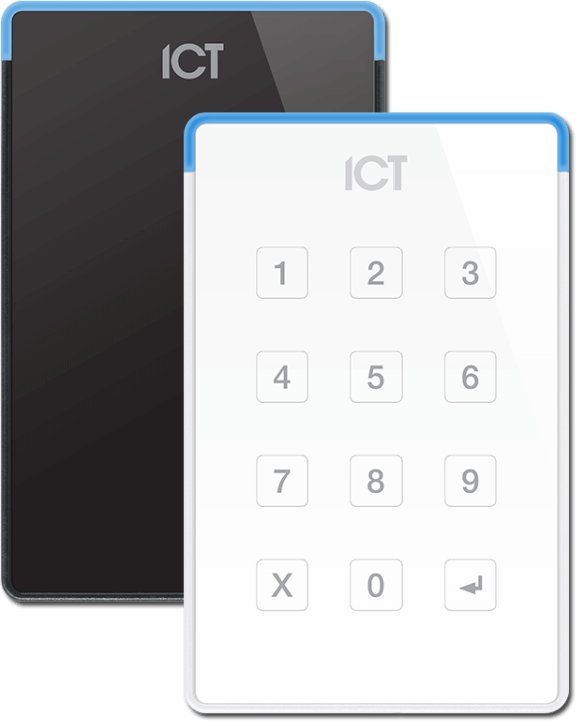

Card Readers

Construction


Wall Specifications

Concrete block walls, anchored to the floor slab. Slab to 11ft height, 1 hour fire rated drywall partition wall above block wall to underside of ceiling slab at approximately 20ft total height.

Partition wall (shared party walls between units) construction 3 5/8 steel stud, 3” Sound Attenuation Batt Insulation, 3 rows stiffening channel, 2 layer type x fire rated drywall taped and finished in white eggshell paint. Block to be coated with block filler and finish in white egg shell paint.

Flooring

Existing concrete floor.

Garage Door


Garage Door Wall
Heavy gauge steel stud with 2 layer type x Fire Rated drywall.
3” Sound Attenuation Batt Insulation
Finished in white egg shell paint.
Garage door opening finished in 3mm aluminum finished trim casing surround.


Roll-up Garage Door
17’7 x 9’0 T175MR Silver, c/w double end caps & double end hinges, (1) full horizontal transom within a section per door, clear anodized with 1/8” tempered clear units, 3” Vertical Lift Hardware Set, ADCA to steel jambs, solid shaft, flange bearings, aluminum weather-strip.
Garage Door Operator: DC-138 Dyna-Hoist Operator, 3/8HP, including control panel, photo eyes and battery back-up.
Man-door (inside roll-up door) 38” x 80” c/w low threshold incorporated with full view section, where applicable.
Man-door: Metal 1 hour fire rated door with lock set.


Man Door separated from Garage Roll-up ToyBx Garage Door Version 1
Man Door inside Roll-up Garage Door ToyBx Garage Door Version 2

Car Lifts


Coming Soon

Office & Studios


Coming Soon

Cabinetry


Coming Soon

Mezzanine


Coming Soon

Flooring


Coming Soon

Electrical & Mechanical


Electrical
Maximum 70 amp based on 208 Volt Single phase or 115 Volt Single Phase.
One LED high bay light fixture with one light switch on a 15 amp breaker.
Two 15 amp wall outlets housed in conduit on a single 15 amp breaker.
Overhead door opener based on a 15 amp breaker.

Internet Specifications
Base building Internet via conduit to ToyBx unit.

Fire & Life Safety
Common elements and ToyBx unit sprinklered.

Mechanical/HVAC
Base building HVAC system, forced air supply and return.

Warehousing


Coming Soon

Design to Suit

Extra-wide garage doors are just the beginning. From car stackers, private mezzanines, and options to personalize your ToyBx, if you can dream it, you can build it.

3D box detailed

Stop driving in circles
At ToyBx, two premium car elevators streamline access to upper floor units, while app-based entry means you’re never left waiting.

Gain Access to ToyBx Models

Approved Automotive Brands

EVERY FLOOR PROVIDES

Two restrooms
Utility room, wash basin and cleanup space
Extra-wide drive aisles
